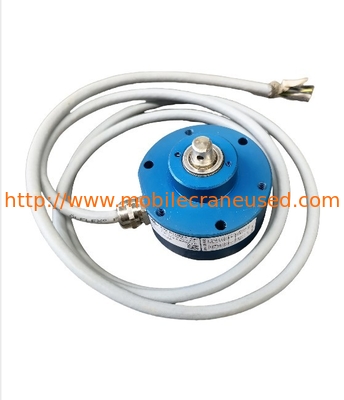

1021400134 Zoomlion Crane Accessories Angular Displacement Sensor D530760-A20B*20-0

Product Description

Zoomlion Crane Accessories Angular Displacement Sensor D530760-A20B*20-0

1021400134 fits the following models:

Function:

The primary functions of a crane angle displacement sensor include:

1.Precise Measurement of Boom Angle
The angle displacement sensor can accurately measure the rotation angle and position changes of the crane boom.This is crucial for crane operation,as it allows the operator to understand the real-time posture of the boom,thereby enabling safer and more precise lifting operations.

2.Providing Feedback Signals for Closed-Loop Control
In the crane control system,the angle displacement sensor can convert the measured angle information into electrical signals and feed them back to the control system.Through closed-loop control,the system can dynamically adjust the angle and position of the boom according to preset parameters,ensuring the precision and stability of the lifting process.

3.Ensuring Equipment Safety
The angle displacement sensor can continuously monitor the angle changes of the boom,preventing it from over-extending or deviating from the safe range.Once an abnormal angle is detected,the sensor immediately sends an alarm signal to the control system,which then activates the safety protection mechanism to prevent equipment damage or accidents.

4.Enhancing Operational Efficiency
By providing precise angle measurement and feedback,the angle displacement sensor helps crane operators complete lifting tasks more efficiently.It reduces the errors associated with manual adjustments,improves lifting accuracy,and enhances work efficiency.

5.Adapting to Harsh Environments
Angle displacement sensors are typically designed with non-contact technology,offering high reliability and strong resistance to interference.They can operate stably in harsh industrial environments,such as those with high temperatures,low temperatures,dust,or oil contamination.

6.Static Angle Measurement
In some crane applications,the angle displacement sensor can also be used for static angle measurement.For example,it can measure the tilt angle of the boom using a plumb bob method.
