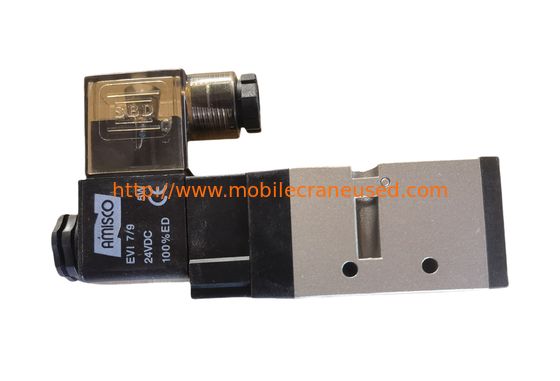

1070500076 Zoomlion crane parts single electric control two position five way solenoid valve VF3330-06 24V

Product Description

Zoomlion crane parts single electric control two position five way solenoid valve VF3330-06 24V

1070500076 fits the following models:

QY25V531

Function:

Crane in the single electric control two five-way solenoid valve is an important hydraulic control system components, its main role is to control the flow of hydraulic oil through the electromagnetic force, so as to achieve the motion control of the relevant parts of the crane. The following is its specific role and working principle:
1. control the flow of hydraulic oil
The single electric control two-position five-way solenoid valve realises the outstretching and retracting of the crane's outriggers, telescopic boom and other parts by changing the flow direction of the hydraulic oil.
2. Realise two-way control
The two five-way solenoid valve has two working positions, which can flexibly switch the path of hydraulic oil and realise the two-way movement of the hydraulic cylinder.
3. Remote control and automation
The solenoid valve can be operated remotely through the electric control signal, which improves the convenience and automation of the crane operation.
4. Safety and Reliability
The single electronically controlled solenoid valve will automatically reset to the initial state after power failure to ensure that the system is in a safe position.
Two five-way solenoid valve has five ports: one inlet port (P), two working ports (A and B) and two return ports (R and S). Through the control of the electromagnetic coil on and off, the spool switch between two positions, so as to achieve the hydraulic oil flow switching.
